Crystal Quest

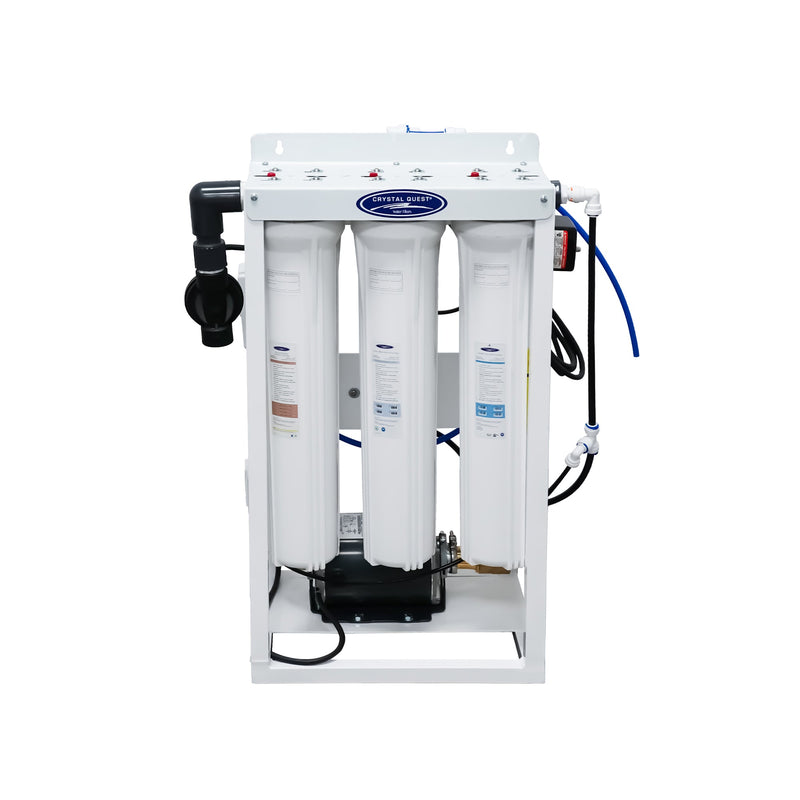

Crystal Quest Whole House Reverse Osmosis System

$2,227.00

Flow Rate (GPD)

Configuration

Pump Type

✓ Free shipping on orders over $100

✓ 30-day hassle-free returns

✓ In stock & ships from the USA

✓ Questions? Call 866-560-9808 · Mon–Fri 8am–6pm MST

SKU: N/A | In Stock

The Ultimate Whole House Filtration Experience

The Crystal Quest Whole House Reverse Osmosis System is the highest-performing RO system on the market, backed by more than 25 years of experience. Engineered to deliver purified water throughout your entire home, every system is tested in-house before shipping and arrives fully operational, requiring minimal plumbing. With regular prefilter and membrane maintenance, these systems are built to last 15–20 years.

All systems are modular, low-maintenance, and economical. Choose from 9 different flow rates to match your home's exact needs — from a single-bathroom home to a 5,000+ GPD commercial-scale property.

Benefits

Compact, space-saving design
Easily accessible components
Expandable and lightweight
Fully equipped and customizable
Low operational and maintenance costs
Factory tested and preserved
CE compliant
Made in the USA
ISO certified components

Storage Tank Kit Components

RO System — Commercial-grade, 300–7,000 GPD with integrated prefiltration to extend membrane life.
Water Storage Tank — Atmospheric tank (165, 220, or 500 gallons) sized to your system and available space.
Pump — Delivers purified water from the tank to your home on demand.
Float Switches — Automatically cycles the RO system on/off based on tank water level.

Note: Additional shipping charges may apply for orders with 500-gallon storage tanks.

Optional Add-Ons

UV Water Sterilizer (12 GPM)

Adds an extra layer of protection against microbiological contamination downstream of the RO system.

Alkalizing Postfilter

Enhances alkalinity, mineralization, and oxidation of purified water before it enters your home.

Remineralizer System

Adds essential minerals back into purified water and adjusts pH to prevent damage to plumbing and fixtures from acidic RO water.

System	Remineralizer
300–2,500 GPD	Single Big Blue Alkalizer/Remineralizer
4,000–5,000 GPD	Remineralizer System (1.5 cubic feet)
7,000 GPD	Remineralizer System (2.0 cubic feet)

Available Upgrades

Stainless-Steel Rotary Vane Pump — Longer lifespan; better resistance to high TDS and corrosive materials
Concentrate Recycle Valve — Increases system efficiency by recycling wastewater into the feed stream
SWP Digital Dual TDS Controller — Simultaneous monitoring of feed and permeate TDS
SWP Digital TDS/Conductivity Controller
S150 Computer Controller with Feed Flush — Pre-treatment lockout, tank level input, LED status display, alarm function (4,000 GPD and up)
Chemical Pump Outlet
Blending Valve — Mixes feed water with RO permeate to achieve a desired TDS level
Permeate Sample Port
240V or 110V, 50–60 Hz options

Operating Specifications

Parameter	Value
Weight (lbs)	50–265
Motor (hp)	0–1.5
Voltage	110V / 220V
Hertz	50 or 60
Feed Connection	3/8" or 1"
Product Connection	3/8" or 1"
Waste Connection	1/4", 3/8", or 1"
Min. Feed Pressure (psi)	45
NaCl Rejection	96–98.5%
Max. Hardness (grains/gal)	15
Max. TDS (ppm)	1,000–2,000 @ 77°F
Operating Pressure (psi)	50–150
pH Range	3–11

All systems standard at 110V unless otherwise requested. Refer to each system's manual for exact values.

System Dimensions (L × W × H)

Flow Rate	Dimensions
300–400 GPD	17" × 23" × 35"
500–1,500 GPD	18" × 24" × 49"
1,800 GPD	20" × 24" × 51"
2,500 GPD	18" × 24" × 49"
4,000–7,000 GPD	30" × 36" × 59"

Storage Tank Dimensions

System	Tank Size
200–300 GPD	165 Gallons (31"D × 56"H)
500–2,500 GPD	220 Gallons (42"D × 44"H)
4,000–7,000 GPD	500 Gallons (48"D × 73"H)

Measure your door opening before installation.

Recommended Flow Rate by Home Size

Flow Rate	Home Size
200–300 GPD	1–1.5 Bathrooms
500–2,500 GPD	1–4 Bathrooms
4,000–7,000 GPD	5+ Bathrooms

Replacement Membranes & Cartridges

System	Component	SKU
300 GPD	(1) 2.5" × 14" RO Membrane	CQE-RC-04111
	(1) 2.5 × 20 Sediment Reusable Pleated Filter Cartridge	CQE-RC-04015
	(1) 2.5 × 20 Coconut-based Carbon Block Filter Cartridge	CQE-RC-04014
	(1) 2.5 × 20 SMART Filter Cartridge	CQE-RC-04016
400 GPD	(1) 2.5" × 21" RO Membrane	CQE-RC-04084
	(1) 2.5 × 20 Sediment Reusable Pleated Filter Cartridge	CQE-RC-04015
	(1) 2.5 × 20 Coconut-based Carbon Block Filter Cartridge	CQE-RC-04014
	(1) 2.5 × 20 SMART Filter Cartridge	CQE-RC-04016
500 GPD	(2) 2.5" × 21" RO Membrane	CQE-RC-04084
	(1) 5" × 10" Sediment Reusable Pleated Filter Cartridge	CQE-RC-04033
	(1) 5" × 10" SMART Filter Cartridge	CQE-RC-04027
750 GPD	(1) 2.5" × 40" RO Membrane	CQE-RC-04109
	(1) 5" × 10" SMART Filter Cartridge	CQE-RC-04027
	(1) 5" × 10" Sediment Reusable Pleated Filter Cartridge	CQE-RC-04033
1,000 GPD	(3) 2.5" × 21" RO Membrane	CQE-RC-04084
	(1) 5" × 10" SMART Filter Cartridge	CQE-RC-04027
	(1) 5" × 10" Sediment Reusable Pleated Filter Cartridge	CQE-RC-04033
1,500 GPD	(2) 2.5" × 40" RO Membrane	CQE-RC-04109
	(1) 5" × 20" Sediment Reusable Pleated Filter Cartridge	CQE-RC-04034
	(1) 5" × 20" SMART Filter Cartridge	CQE-RC-04030
1,800 GPD	(1) 4" × 40" RO Membrane	CQE-RC-04086
	(1) 5" × 20" Sediment Reusable Pleated Filter Cartridge	CQE-RC-04034
	(1) 5" × 20" SMART Filter Cartridge	CQE-RC-04030
2,500 GPD	(3) 2.5" × 40" RO Membrane	CQE-RC-04109
	(1) 5" × 20" Sediment Reusable Pleated Filter Cartridge	CQE-RC-04034
	(1) 5" × 20" SMART Filter Cartridge	CQE-RC-04030
4,000 GPD	(2) 4" × 40" RO Membrane	CQE-RC-04086
	(1) 5" × 20" Sediment Reusable Pleated Filter Cartridge	CQE-RC-04034
	(1) 5" × 20" SMART Filter Cartridge	CQE-RC-04030
	(1) 5" × 20" Coconut-based Carbon Block Filter Cartridge	CQE-RC-04036
5,000 GPD	(3) 4" × 40" RO Membrane	CQE-RC-04086
	(1) 5" × 20" Sediment Reusable Pleated Filter Cartridge	CQE-RC-04034
	(1) 5" × 20" SMART Filter Cartridge	CQE-RC-04030
	(1) 5" × 20" Coconut-based Carbon Block Filter Cartridge	CQE-RC-04036
7,000 GPD	(4) 4" × 40" RO Membrane	CQE-RC-04086
	(1) 5" × 20" Sediment Reusable Pleated Filter Cartridge	CQE-RC-04034
	(1) 5" × 20" SMART Filter Cartridge	CQE-RC-04030
	(1) 5" × 20" Coconut-based Carbon Block Filter Cartridge	CQE-RC-04036
	(1) 5" × 20" GAC Filter Cartridge	CQE-RC-04106

Installation Manuals & Schematics

All systems rated at 77°F with TDS under 2,000 ppm. Contact us if your water falls outside these constraints: 866-560-9808 | info@purewaterguys.com
