Crystal Quest

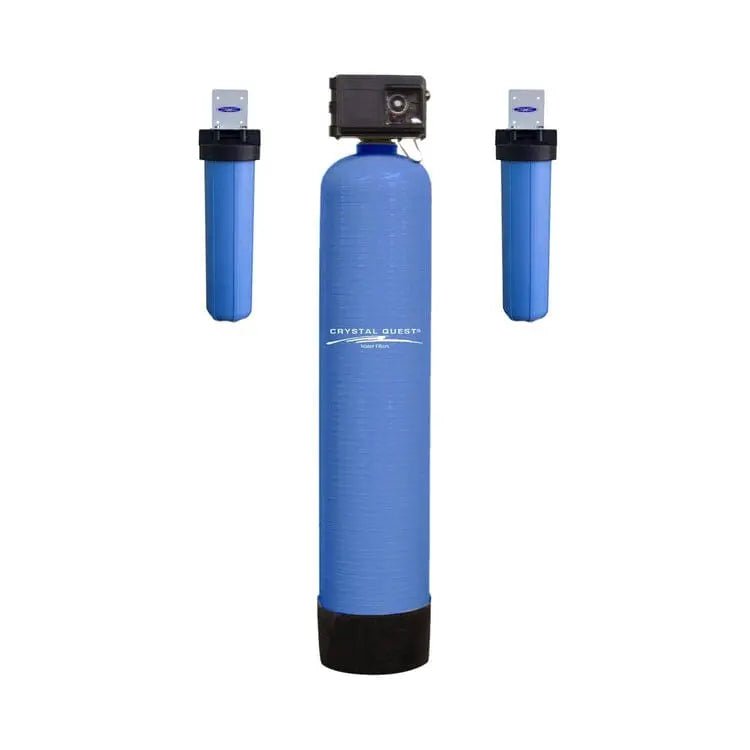

Crystal Quest High Flow Whole House Water Filter Smart Media
The Crystal Quest High Flow Whole House Water Filter delivers clean, filtered water throughout larger homes. Available in 15, 20, and 35 GPM configurations — engineered for maximum filtration and maximum performance with minimal maintenance. BPA-free, eco-conscious, and built for commercial-grade durability.
SMART Filtration Technology
Water flows through our SMART special house blend of 2 types of coconut-shell GAC (including Catalytic) with 2 types of Eagle Redox Alloys® (9500 & 6500) and anion exchange resin. This blend effectively reduces and removes heavy metals, chlorine, chloramine, pesticides, herbicides, pharmaceutical by-products, and other inorganic substances. Ceramic and Tourmaline balls enhance the water and maintain a more alkaline pH.
Pre-Filtration
Water flows through a 20” sediment cartridge that removes sediment, silt, sand, and dirt.
SMART Media Tank
Water flows through SMART Multimedia — 2 types of coconut shell GAC (Standard & Catalytic) infused with Eagle Redox Alloys® 6500 & 9500, plus ion exchange resin — reducing heavy metals, chlorine, chloramine, and organic contaminants such as herbicides, pesticides, and pharmaceutical by-products.
Post-Filtration
Water flows through a 20” solid carbon cartridge removing VOCs, insecticides, pesticides, and industrial solvents.
Benefits
- Water heater efficiency increased up to 29%
- Save up to 70% on household detergents and soaps
- Softer skin and more manageable hair
- Up to 30% longer life for washing machines, dishwashers, water heaters, and household plumbing
- Fabrics whiter, brighter, and last up to 33% longer
- Dishes come clean more easily, without spots
- Great tasting water for drinking, cooking, baby formula, and more
Optional Add-Ons
- Water Softener — Ion exchange resin and brine water conditioner for ion exchange softening
- Salt-Free Anti-Scale Conditioner — Transforms calcium hardness into calcite crystals that rinse away, no salt or backwash required. For hardness above 25 GPG consult a water specialist.
- Magnet — Reverses the negative effects of minerals, protecting equipment efficiency and longevity with no energy costs or chemicals
System Features
- Timer Control Valves with fully adjustable backwash cycles
- Heavy duty composite fiberglass tanks
- High Flow Distributor and self-adjusting backwash controller
- Flow controller to limit backwash flow
- Engineered for commercial & industrial use
Specifications
Standalone Configuration
| 15 GPM (1–3 Bathrooms) | 20 GPM (4–5 Bathrooms) | 35 GPM (6+ Bathrooms) | |
|---|---|---|---|
| Tank Size (cubic feet) | 3 | 4 | 7 |
| Pipe Size | 1” | 1.5” | 1.5” |
| Mineral Tank Size | 14” × 65” | 16” × 65” | 21” × 62” |
| Service Flow (GPM) | 14 | 20 | 35 |
| Peak Flow (GPM) | 22 | 41 | 60 |
| Backwash Flow (GPM) | 5 | 7 | 12 |
| Space Required (W × D × H) | 15” × 16” × 75” | 17” × 18” × 75” | 23” × 24” × 84” |
With Water Softener
| 15 GPM | 20 GPM | 35 GPM | |
|---|---|---|---|
| Tank Size (cubic feet) | 3 | 4 | 7 |
| Pipe Size | 1” | 1.5” | 1.5” |
| Mineral Tank Size | 14” × 65” | 16” × 65” | 21” × 62” |
| Brine Tank Size | 24” × 41” | 24” × 41” | 24” × 50” |
| Service Flow (GPM) | 14 | 20 | 35 |
| Peak Flow (GPM) | 22 | 41 | 60 |
| Backwash Flow (GPM) | 5 | 7 | 12 |
| Space Required (W × D × H) | 48” × 26” × 75” | 50” × 26” × 75” | 56” × 26” × 84” |
With Anti-Scale Conditioner
| 15 GPM | 20 GPM | 35 GPM | |
|---|---|---|---|
| Tank Size (cubic feet) | 3 | 4 | 7 |
| Pipe Size | 1” | 1” | 1.5” |
| Mineral Tank Size | 14” × 65” | 16” × 65” | 21” × 62” |
| Service Flow (GPM) | 20 | 25 | 40 |
| Peak Flow (GPM) | 22 | 30 | 50 |
| Space Required (W × D × H) | 15” × 16” × 75” | 17” × 18” × 75” | 23” × 24” × 84” |
Parts & Components
| Component | SKU |
|---|---|
| SMART Multimedia (replacement filter media) | CQE-RM-05017 |
| Eaglesorb Water Softener Media | CQE-RM-05002 |
| Eaglesorb Anti-Scale Media | CQE-RM-05013 |
| Sediment Cartridge 4-5/8” × 20” | CQE-RC-04034 |
| Carbon Block Filter Cartridge 4-5/8” × 20” | CQE-RC-04036 |
| UF Membrane Cartridge 2-7/8” × 20” | CQE-RC-04056 |
