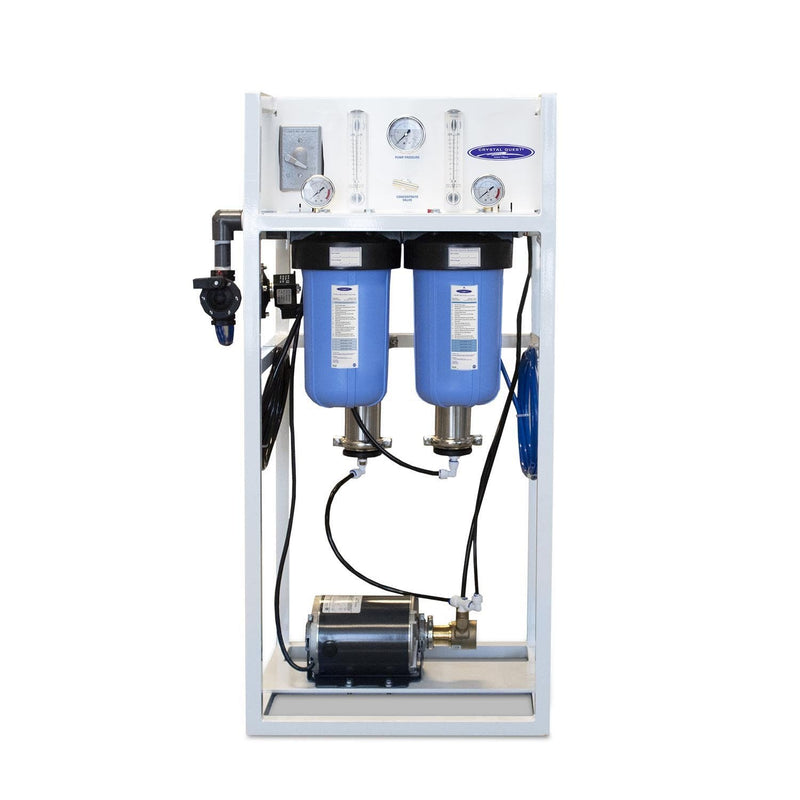

Crystal Quest Commercial Mid-Flow Reverse Osmosis System

$3,884.00

Flow Rate

Configuration

Pump

✓ Freight shipping — contact us for a quote

✓ 30-day hassle-free returns

✓ In stock & ships from the USA

✓ Questions? Call 866-560-9808 · Mon–Fri 8am–6pm MST

SKU: N/A | In Stock

Commercial-Grade Water Purification for Any Facility

The Crystal Quest Commercial Mid-Flow Reverse Osmosis System delivers industrial-strength water purification for restaurants, hotels, breweries, medical facilities, schools, and light manufacturing applications — from 500 to 7,000 gallons per day. Every system is factory-tested before shipping and engineered for continuous-duty operation with minimal downtime. Modular, expandable, and low-maintenance, these systems are built to last 15–20 years.

Benefits

Compact, space-saving design
Easily accessible components for fast service
Expandable and lightweight aluminum frame
Fully equipped and customizable
Low operational and maintenance costs
Factory tested and preserved
CE compliant
Made in the USA
ISO certified components

Storage Tank Kit Components

RO System — Commercial-grade, 500–7,000 GPD with integrated prefiltration to extend membrane life.
Water Storage Tank — Atmospheric tank (165, 220, or 500 gallons) sized to your system and available space.
Pump — Delivers purified water from the tank to your facility on demand.
Float Switches — Automatically cycles the RO system on/off based on tank water level.

Note: Storage tank kit configurations (165, 220, and 500-gallon) include large-format tanks requiring freight delivery. Freight is quoted separately and confirmed before order processing. For tank kit configurations, use our quote form for a full project estimate including freight.

Optional Add-Ons

UV Water Sterilizer (12 GPM)

Adds microbiological protection downstream of the RO system — ideal for food service and medical applications.

TDS Meter (Panel Mount)

Provides simultaneous monitoring of feed and product water quality for real-time system performance verification.

Available Upgrades

Stainless-Steel Rotary Vane Pump — Longer lifespan; better resistance to high TDS and corrosive materials (500–2,500 GPD systems)
Concentrate Recycle Valve — Increases system efficiency by recycling wastewater into the feed stream
SWP Digital Dual TDS Controller — Simultaneous monitoring of feed and permeate TDS
SWP Digital TDS/Conductivity Controller
S150 Computer Controller with Feed Flush — Pre-treatment lockout, tank level input, LED status display, alarm function (4,000 GPD and up)
Chemical Pump Outlet
Blending Valve — Mixes feed water with RO permeate to achieve a desired TDS level
Permeate Sample Port
240V or 110V, 50–60 Hz options

Operating Specifications

Parameter	Value
Motor (hp)	0.5–1.5
Voltage	110V / 220V
Hertz	50 or 60
Feed Connection	3/8" or 1"
Product Connection	3/8" or 1"
Waste Connection	1/4", 3/8", or 1"
Min. Feed Pressure (psi)	45
NaCl Rejection	96–98.5%
Max. Hardness (grains/gal)	15
Max. TDS (ppm)	1,000–2,000 @ 77°F
Operating Pressure (psi)	50–150
pH Range	3–11
Max. Temperature	105°F

All systems standard at 110V unless otherwise requested. Refer to each system's manual for exact values.

System Dimensions (L × W × H)

Flow Rate	Dimensions
500–1,500 GPD	18" × 24" × 49"
1,800 GPD	20" × 24" × 51"
2,500 GPD	18" × 24" × 49"
4,000–7,000 GPD	30" × 36" × 59"

Storage Tank Dimensions

Tank Size	Dimensions (D × H)
165 Gallons	31" × 56"
220 Gallons	42" × 44"
500 Gallons	48" × 73"

Measure your door opening before installation.

Recommended Flow Rate by Application

Flow Rate	Typical Commercial Application
500–750 GPD	Small restaurants, coffee shops, small offices
1,000–1,500 GPD	Restaurants, breweries, hotels (up to 50 rooms), clinics
1,800–2,500 GPD	Large restaurants, food processing, schools, medical facilities
4,000–5,000 GPD	Hotels (100+ rooms), light manufacturing, car washes
7,000 GPD	Large industrial, high-volume food & beverage, municipal supplemental

Replacement Membranes & Cartridges

System	Component	SKU
500 GPD	(2) 2.5" × 21" RO Membrane	CQE-RC-04084
	(1) 5" × 10" Sediment Pleated Filter	CQE-RC-04033
	(1) 5" × 10" SMART Filter Cartridge	CQE-RC-04027
750 GPD	(1) 2.5" × 40" RO Membrane	CQE-RC-04109
	(1) 5" × 10" Sediment Pleated Filter	CQE-RC-04033
	(1) 5" × 10" SMART Filter Cartridge	CQE-RC-04027
1,000 GPD	(3) 2.5" × 21" RO Membrane	CQE-RC-04084
	(1) 5" × 10" Sediment Pleated Filter	CQE-RC-04033
	(1) 5" × 10" SMART Filter Cartridge	CQE-RC-04027
1,500 GPD	(2) 2.5" × 40" RO Membrane	CQE-RC-04109
	(1) 5" × 20" Sediment Pleated Filter	CQE-RC-04034
	(1) 5" × 20" SMART Filter Cartridge	CQE-RC-04030
1,800 GPD	(1) 4" × 40" RO Membrane	CQE-RC-04086
	(1) 5" × 20" Sediment Pleated Filter	CQE-RC-04034
	(1) 5" × 20" SMART Filter Cartridge	CQE-RC-04030
2,500 GPD	(3) 2.5" × 40" RO Membrane	CQE-RC-04109
	(1) 5" × 20" Sediment Pleated Filter	CQE-RC-04034
	(1) 5" × 20" SMART Filter Cartridge	CQE-RC-04030
4,000 GPD	(2) 4" × 40" RO Membrane	CQE-RC-04086
	(1) 5" × 20" Sediment Pleated Filter	CQE-RC-04034
	(1) 5" × 20" SMART Filter Cartridge	CQE-RC-04030
	(1) 5" × 20" Carbon Block Filter	CQE-RC-04036
5,000 GPD	(3) 4" × 40" RO Membrane	CQE-RC-04086
	(1) 5" × 20" Sediment Pleated Filter	CQE-RC-04034
	(1) 5" × 20" SMART Filter Cartridge	CQE-RC-04030
	(1) 5" × 20" Carbon Block Filter	CQE-RC-04036
7,000 GPD	(4) 4" × 40" RO Membrane	CQE-RC-04086
	(1) 5" × 20" Sediment Pleated Filter	CQE-RC-04034
	(1) 5" × 20" SMART Filter Cartridge	CQE-RC-04030
	(1) 5" × 20" Carbon Block Filter	CQE-RC-04036
	(1) 5" × 20" GAC Filter Cartridge	CQE-RC-04106
