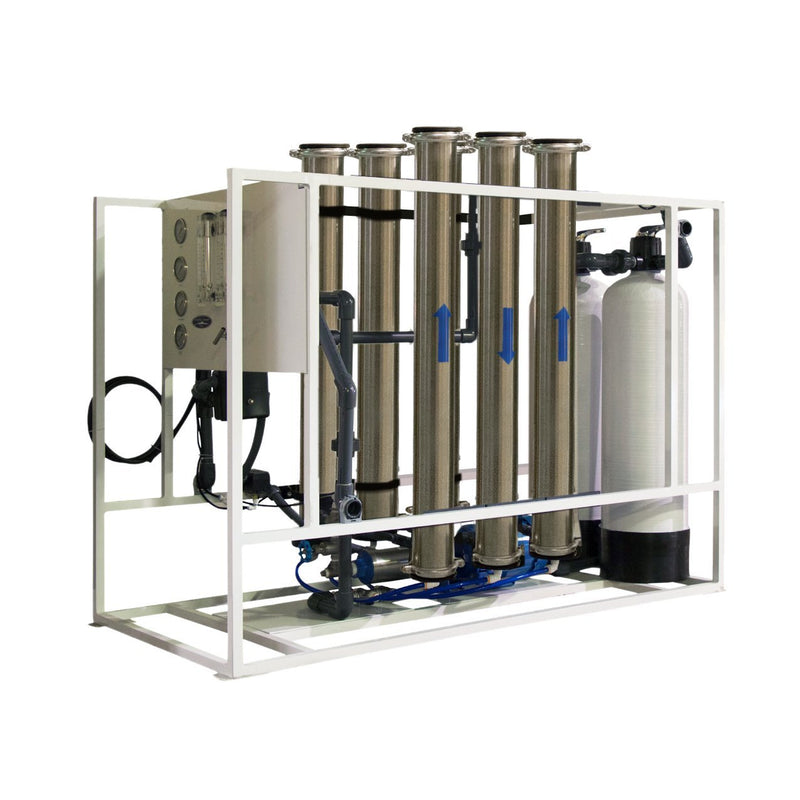

Commercial High-Flow Reverse Osmosis System — 10,000 to 50,000 GPD
Storage tank kit configurations include large-format tanks requiring freight delivery. Freight is TBD and will be confirmed before order processing.
Industrial-Scale Water Purification for High-Demand Facilities
The Crystal Quest Commercial High-Flow Reverse Osmosis System delivers continuous-duty, industrial-strength water purification at flow rates from 10,000 to 50,000 gallons per day — purpose-built for large manufacturing plants, food and beverage processors, municipal supplemental treatment, agricultural operations, and any facility where mid-flow commercial systems fall short of demand. Every system ships factory-tested, engineered for 24/7 operation, and built to last 15–20 years with routine membrane and filter maintenance.
Benefits
- Horizontal skid design engineered for industrial flow rates — stable, serviceable footprint
- Concentrate recirculation option — improves recovery rate and reduces wastewater
- CE compliant, ISO-certified components
- Made in the USA
- Factory-tested and preserved before shipment
- Low operational and maintenance costs
- Expandable configuration options available
- 10 × 4″ × 40″ TFC HF1 membranes on the 20,000 GPD (scaled per flow rate)
- Gould's multistage pump designed for continuous high-pressure operation
Applications
- Food & Beverage Manufacturing — Boiler feed water, process water, beverage blending, dairy and produce washing
- Industrial Manufacturing — Parts rinsing, cooling tower makeup, semiconductor fabrication, plating operations
- Municipal & Government — Supplemental treatment, emergency water supply, military base water systems
- Agricultural — Greenhouse irrigation, livestock water, hydroponics, aquaculture
- Healthcare & Laboratory — Hospital process water, pharmaceutical-grade purified water, dialysis center supply
- Hotels & Large Facilities — Properties with 200+ rooms, large campuses, multi-building complexes
Controller Upgrade Options
Every high-flow system ships standard with the Rotrol S-150 Computer Controller — a proven industrial control unit with pre-treatment lockout, tank level input, LED status display, feed flush cycle, and alarm function. Two upgrade tiers are available:
- Standard (Rotrol S-150) — Included. Pre-treatment lockout, tank level integration, LED status display, automatic flush, and alarm output. Ideal for sites with on-site operators.
- C-200 Controller (no Ethernet) — +$7,400. Upgraded digital controller with advanced diagnostic display, programmable flush cycles, real-time TDS monitoring, and enhanced alarm logging. Fully self-contained — no network required.
- C-200 Controller with Ethernet — +$9,600. All C-200 features plus built-in Ethernet connectivity for remote monitoring, data logging, and alert notifications. Recommended for unmanned facilities and multi-site operators.
The Ethernet Connection option adds remote network access (+$1,100). Available with any controller tier — gives remote visibility of system status, water quality readings, and alarm events via your facility network.
Feed Water & Pretreatment Requirements
High-flow RO systems are designed for municipal or well water as the feed source. For reliable long-term performance, the following pretreatment is strongly recommended:
- Sediment prefiltration — Remove particulates down to 5 microns before the RO membranes
- Softening or antiscalant injection — Required if hardness exceeds 10–15 grains per gallon; scale will shorten membrane life significantly
- Chlorine removal — TFC membranes are chlorine-sensitive; carbon prefiltration or sodium metabisulfite dosing required for chlorinated municipal supplies
- Iron & manganese — Must be oxidized and filtered prior to the RO if levels exceed 0.05 ppm
Have unusual feed water conditions (high TDS, brackish, elevated iron, or high silica)? Request a custom quote or call 866-560-9808 — we can spec the right pretreatment package for your source water.
Shipping & Freight
These systems ship via freight carrier (LTL or flatbed) — not parcel. Freight is quoted separately based on your delivery location and is confirmed before order processing. Systems 30,000 GPD and above require a loading dock or forklift at the delivery site. Contact us before ordering to confirm freight logistics: 866-560-9808 | info@purewaterguys.com
Compare all commercial RO sizes and project budget ranges: Commercial RO Pricing & Sizing Guide →
Operating Specifications
| Parameter | Value |
|---|---|
| NaCl Rejection | 96–98.5% |
| Max. Feed TDS | 2,000 ppm @ 77°F |
| Min. Feed Pressure | 45 psi |
| Operating Pressure | 50–150 psi |
| pH Range | 3–11 |
| Max. Feed Temperature | 105°F |
| Motor | 5 HP (20,000 GPD); scaled per flow rate |
| Voltage | 110V / 220V (specify at order) |
| Hertz | 50 or 60 Hz |
| Feed Connection | 2" |
| Product Connection | 1" |
| Waste Connection | 1" |
| Concentrate Recirculate | Optional |
| Max. Hardness | 15 grains/gallon |
All GPD ratings measured at 77°F (25°C) with TDS under 2,000 ppm and 50 psi feed pressure. Actual output varies with temperature, feed water quality, and operating pressure.
System Dimensions
| Flow Rate | Approximate Dimensions (L × W × H) | Approx. Weight |
|---|---|---|
| 10,000 GPD | 49″ × 33″ × 54″ | 385 lbs |
| 15,000 GPD | 63″ × 39″ × 54″ | 400 lbs |
| 20,000 GPD | 63″ × 39″ × 54″ | 415 lbs |
| 30,000 GPD | 143″ × 41″ × 80″ | Contact us |
| 40,000 GPD | Contact us for dimensions | Contact us |
| 50,000 GPD | 143″ × 41″ × 80″ | Contact us |
Measure your installation site floor space and door openings before delivery. Systems 30,000 GPD and above ship assembled on a skid and require forklift or loading dock access.
Recommended Flow Rate by Application
| Flow Rate | Typical Application |
|---|---|
| 10,000 GPD | Large hotels (200+ rooms), regional food processors, small municipal supplemental |
| 15,000 GPD | Mid-size manufacturing, large food & beverage facilities, campus water systems |
| 20,000 GPD | Heavy manufacturing, large-scale agriculture, multi-building industrial complexes |
| 30,000 GPD | Industrial parks, large food plants, regional water treatment supplemental |
| 40,000 GPD | Large industrial facilities, major food & beverage producers, multi-campus operations |
| 50,000 GPD | Municipal-scale supplemental treatment, very large industrial operations, military installations |
Replacement Membranes & Cartridges
Every high-flow system uses 4″ × 40″ TFC HF1 commercial RO membrane elements. Membrane quantity scales with flow rate.
| System | RO Membrane Elements (4″ × 40″ TFC HF1) | Prefiltration |
|---|---|---|
| 10,000 GPD | 6 membranes | 18″ FSI Bag 10-micron sediment + 4.5″ × 20″ Coconut Shell GAC / Eagle Redox Alloy |
| 15,000 GPD | 8 membranes | 18″ FSI Bag 10-micron sediment + 4.5″ × 20″ Coconut Shell GAC / Eagle Redox Alloy |
| 20,000 GPD | 10 membranes | 18″ FSI Bag 10-micron sediment + 4.5″ × 20″ Coconut Shell GAC / Eagle Redox Alloy |
| 30,000 GPD | 14 membranes | Contact us for prefiltration specs |
| 40,000 GPD | 16 membranes | Contact us for prefiltration specs |
| 50,000 GPD | 20 membranes | Contact us for prefiltration specs |
Replacement membranes and cartridges are sized to your specific system. Contact us for replacement parts & pricing: 866-560-9808 | info@purewaterguys.com
Installation Manuals & Schematics
- Commercial RO Installation Manual (reference — contact CQ for high-flow revision)
- SWP Float Switch Wiring Diagram
- SWP Float Switch Manual
High-flow system schematics (10,000–50,000 GPD) are provided by Crystal Quest at the time of order. Contact us for pre-sale drawings: 866-560-9808 | info@purewaterguys.com
